Early Design Single Module CCD X-ray Detector

ADSC Quantum 1 Single Module CCD Detector (1995-2000)

The core of the ADSC CCD detectors is a 1x1 inch semiconductor chip with 1150x1150 pixels resolution. A 10x10 cm imaging phosphor faceplate emits photons when hit by X-rays. These photons are collected through an optical taper and detected on the CCD array. Readout times are extremely fast, and due to the high resolution the detector can be moved close to the crystal, which enables very simple data collection strategies comparable to image plates. The big advantage compared to IPs is the absence of any mechanical parts in the detector box. The 4-module Quantum 4 detector is a later and more advanced detector from ADSC.

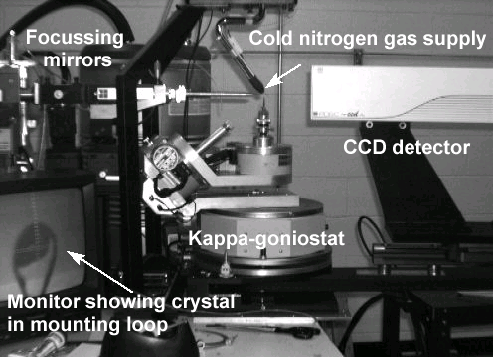

X-ray diffractometer equipped with an early ADSC Quantum-1 CCD detector, a Kappa-Goniostat, Rigaku Ru-200 anode with ADSC/Supper focussing mirrors and a heat exchanger type cryo-cooler.

Note the monitor showing a mounting loop as used in flash cooling of protein crystals. To learn more about the techniques of cryo-cooling of crystals click on the image of crystals in a hanging drop picture.
